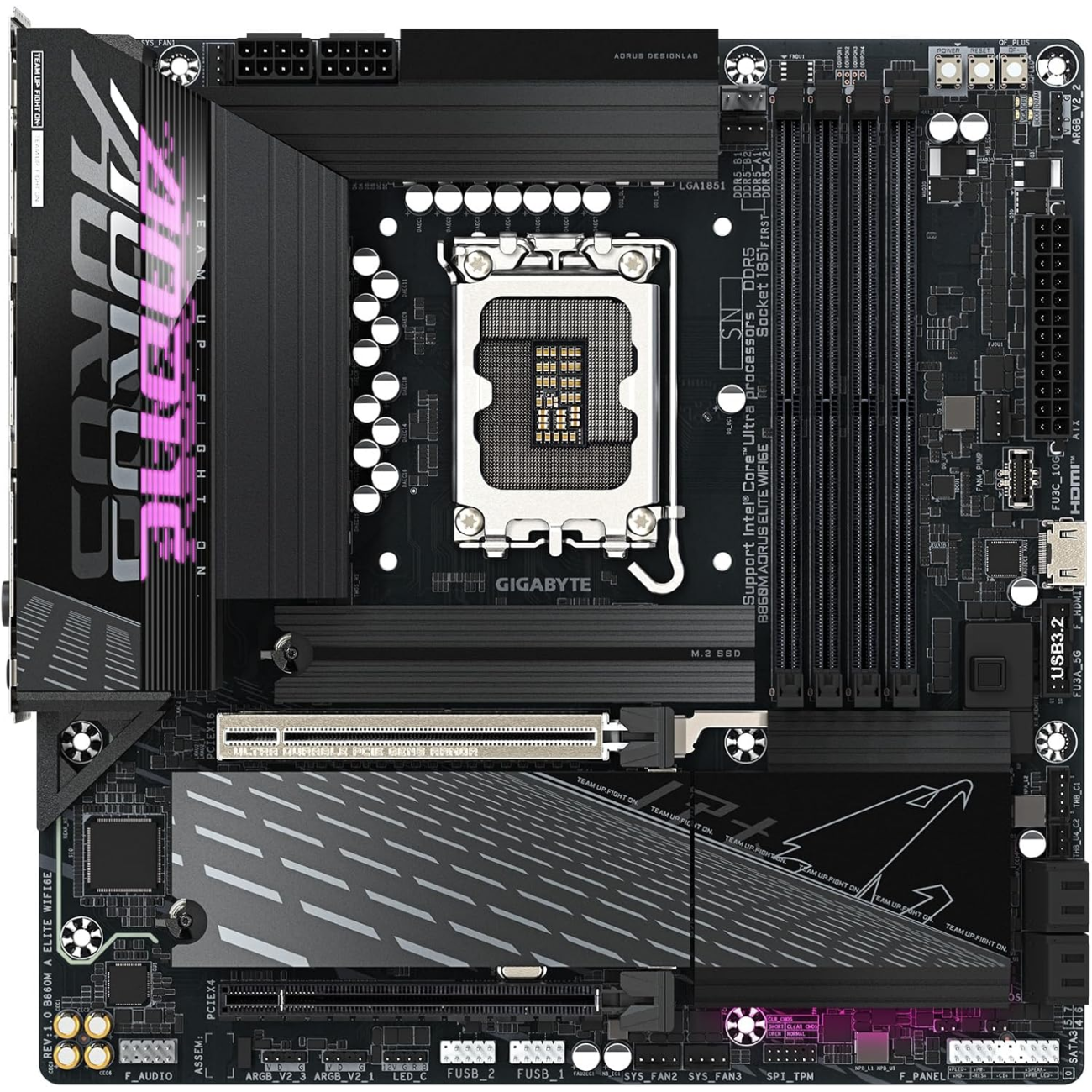

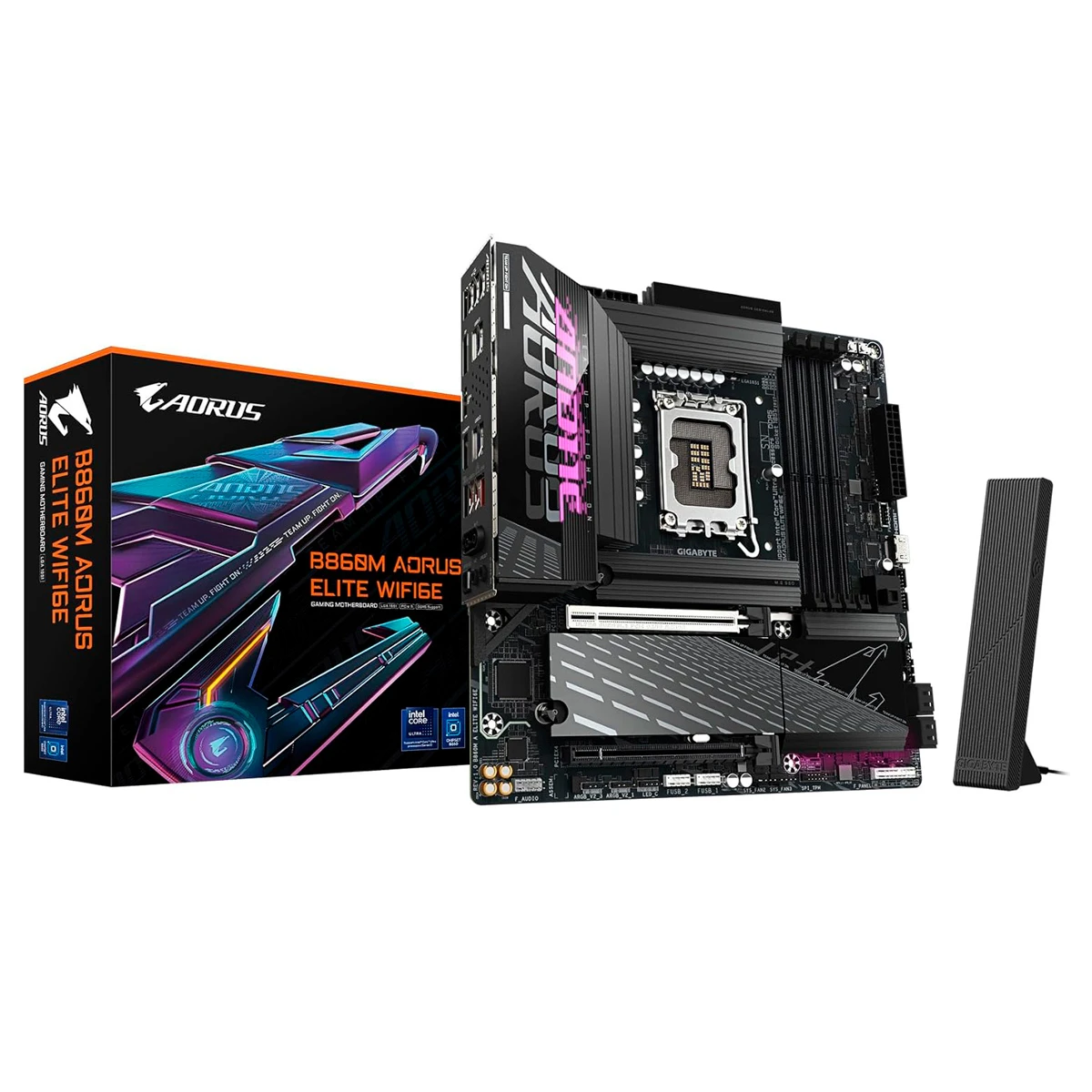

MAINBOARD GIGABYTE AORUS B860M A ELITE WIFI6E LGA1851 INTEL ULTRA DDR5 PCIE 5.0

ESPECIFICACIONES

• Procesador
  LGA1851 socket: Support for Intel ® Core™ Ultra Processors
  (Go to GIGABYTE’s website for the latest CPU support list.)
  L3 cache varies with CPU
• Chipset
  Intel ® B860 Express Chipset
• Memoria
  Support for DDR5 9200(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s memory modules
  4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
  Dual channel memory architecture
  Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  Support for Extreme Memory Profile (XMP) memory modules(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to «Memory Support List» on GIGABYTE’s website for more information.)
• Gráficos Integrados
  Integrated Graphics Processor-Intel® HD Graphics support:

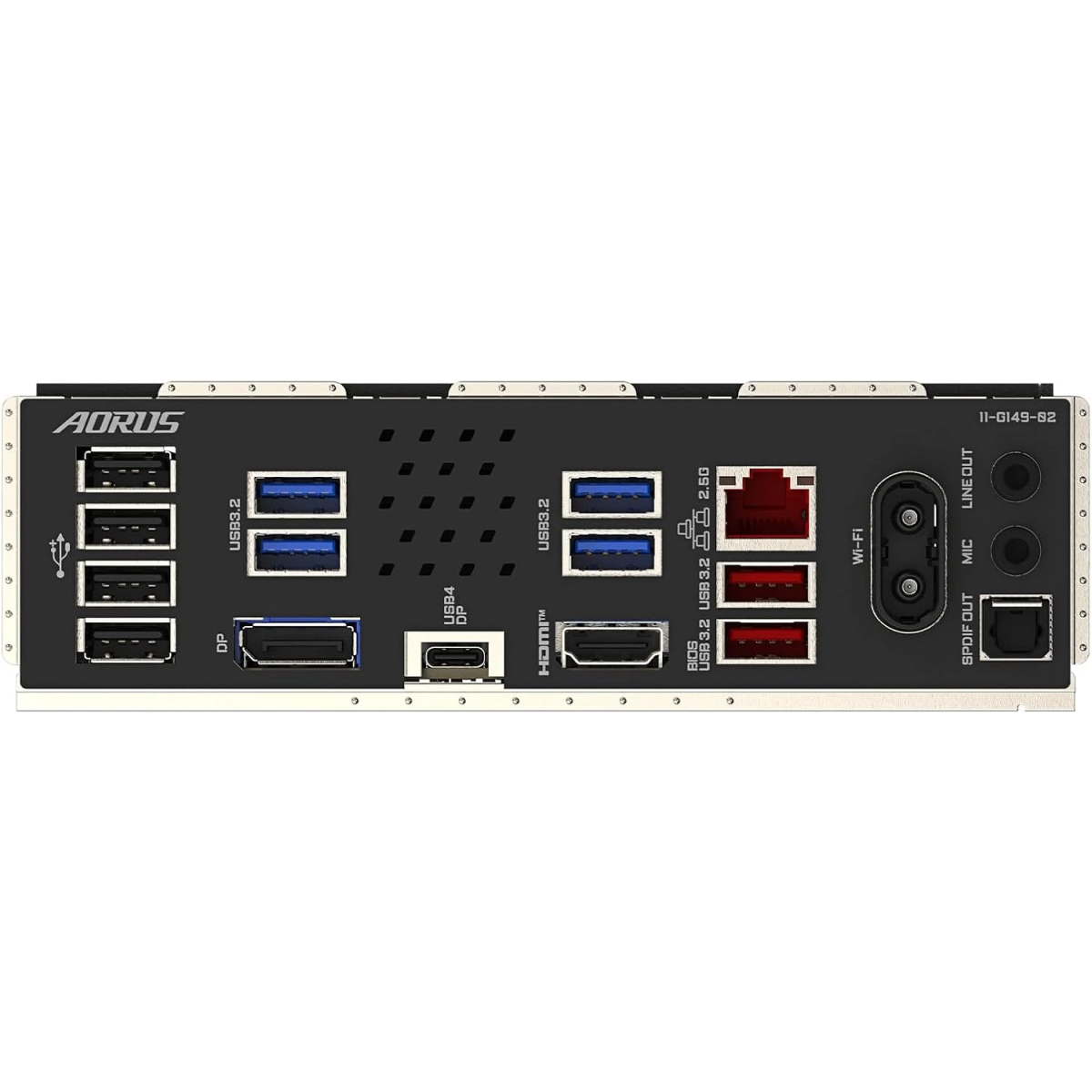

  – 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840×2160@144 Hz
  * Support for DisplayPort 2.1 version.- 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz
  * Support for DisplayPort 2.1 version.- 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
  * Support for HDMI 2.1 version and HDCP 2.3.- 1 x front HDMI port, supporting a maximum resolution of 1920×1080@30 Hz
  * Support for HDMI 1.4 version.(Graphics specifications may vary depending on CPU support.)
