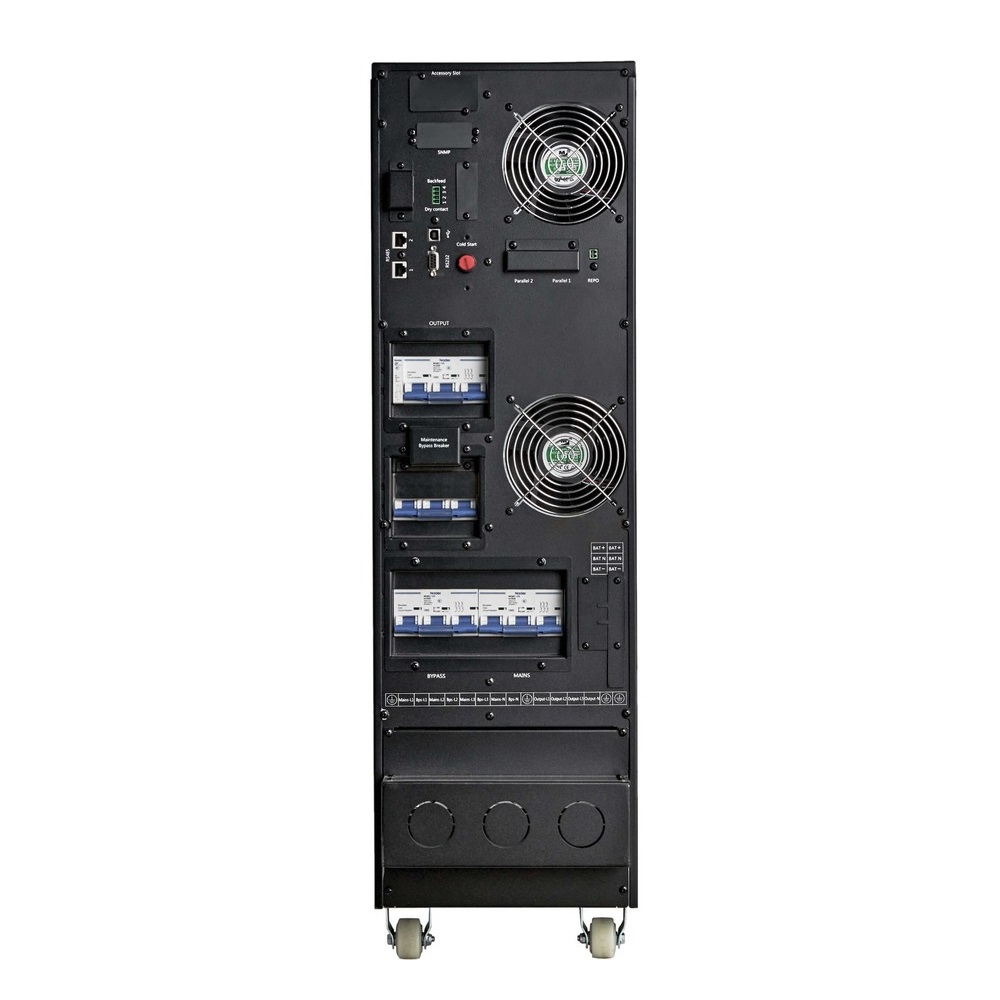

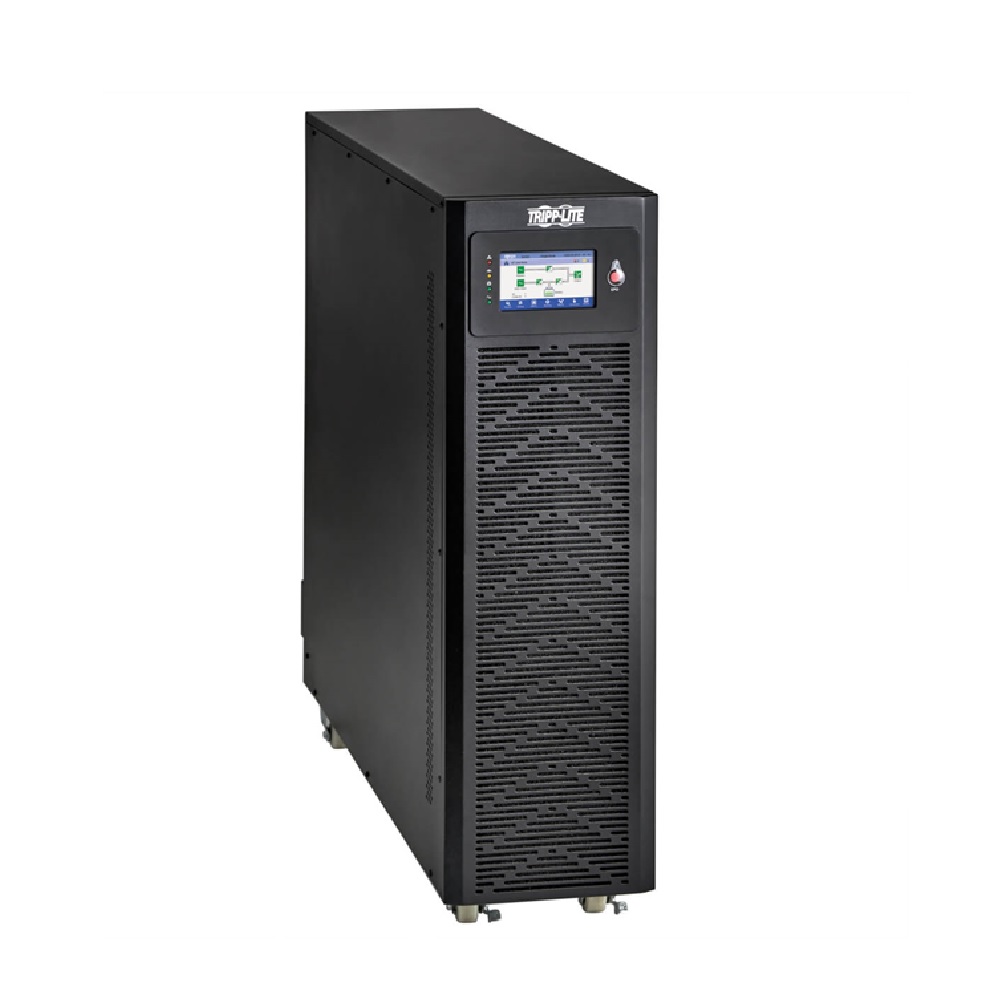

Imagen de UPS TRIPP-LITE SMART ON-LINE 10000VA S3M10K-NIB 220V DOBLE CONVERSION
Imagen de UPS TRIPP-LITE SMART ON-LINE 10000VA S3M10K-NIB 220V DOBLE CONVERSION Imagen de UPS TRIPP-LITE SMART ON-LINE 10000VA S3M10K-NIB 220V DOBLE CONVERSION

Lo sentimos-este producto ya no está disponible

UPS TRIPP-LITE SMART ON-LINE 10000VA S3M10K-NIB 220V DOBLE CONVERSION

Características Topología UPS The two main UPS topologies are Double-Conversion True Online and Standby / Eco. Many quality-based considerations are involved when choosing the the optimal UPS for the job, like how they are coping with voltage disturbances. Doble conversión (en línea) Capacidad de potencia de salida (VA) The maximum power that the device can produce. 10 kVA Potencia de salida The power that the device can produce. 10000 W
Sea el primero en revisar este producto
Fabricante: TRIPP-LITE
Sku: S3M10K-NIB
$3,965.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Especificaciones

Características
Topología UPS
The two main UPS topologies are Double-Conversion True Online and Standby / Eco. Many quality-based considerations are involved when choosing the the optimal UPS for the job, like how they are coping with voltage disturbances.
Doble conversión (en línea)
Capacidad de potencia de salida (VA)
The maximum power that the device can produce.
10 kVA
Potencia de salida
The power that the device can produce.
10000 W
Forma de onda
Onda sinusoidal pura
Voltaje de entrada de operación (min)
The minumum voltage needed by the device during operation.
120 V
Voltaje de entrada de operación (max)
The maximum input voltage supported by the device.
220 V
Frecuencia de entrada
The frequency (Hz) which is required to power the product.
50/60 Hz
Voltaje de operación de salida (min)
The minumum voltage produced by the device during operation.
120 V
Voltaje de operación de salida (max)
The maximum output voltage produced by the device.
220 V
Frecuencia de salida
50/60 Hz
Regulación del voltaje de salida
±1%
Máxima corriente
The greatest possible amount of current
50 A
Número de fases de entrada
3
Número de fases de salida
3
Eficiencia
93%
Eficiencia (modo ECO)
97,3%
Factor de poder
1
Factor de potencia de entrada
0,99
Factor de cima
3:1
Modo ECO

Apagado de emergencia

Corriente de entrada Distorsión Armónica Total (THD)
2%
Filtro de ruido EMI/RFI

Nivel de ruido
The amplitude level of the undesired background noise
55 dB
Funciones de protección de poder
Features that protect the device against power problems e.g. overload.
Sobrevoltaje, Bajo voltaje
Alarma(s) audibles
Audible Alarms available

Modos de alarma audibles
Alarma de batería baja, Alarma de sobrecarga
País de origen
Country where the device is made. Aka Country of manufacture (COM).
China
Puertos e Interfaces
Tipo de salida AC
The type of outlet for AC electricity.
Hardwire
Conector
A power plug is a 2 or 3 pinned device that is placed into an electrical socket in order to make an electrical connection.
Hardwire
Puerto USB
The device features a socket into which a USB cable can be plugged.

Cantidad de puertos USB 2.0
USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
1
Tipo de puerto USB
USB Tipo B
Interfaz en serie

Tipo de serie de interfaz
RS-232, RS-485
Puertos e Interfaces
Puerto - RS-232
The number of sockets (ports) for RS-232. An RS-232 serial port was once a standard feature of a personal computer
1
Ethernet LAN (RJ-45) cantidad de puertos
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
2
Batería
Arranque en frío

Diseño
Factor de forma
Description of visible characteristics of the product.
Torre
Material de la carcasa
What the casing of the product is made of.
Acero
Tipo de enfriamiento







CZ4  06 /25
