Compuzone. UPS TRIPP-LITE SMART ON-LINE 3000VA - 2700W - 120V TIPO TORRE

PRODUCT NAME

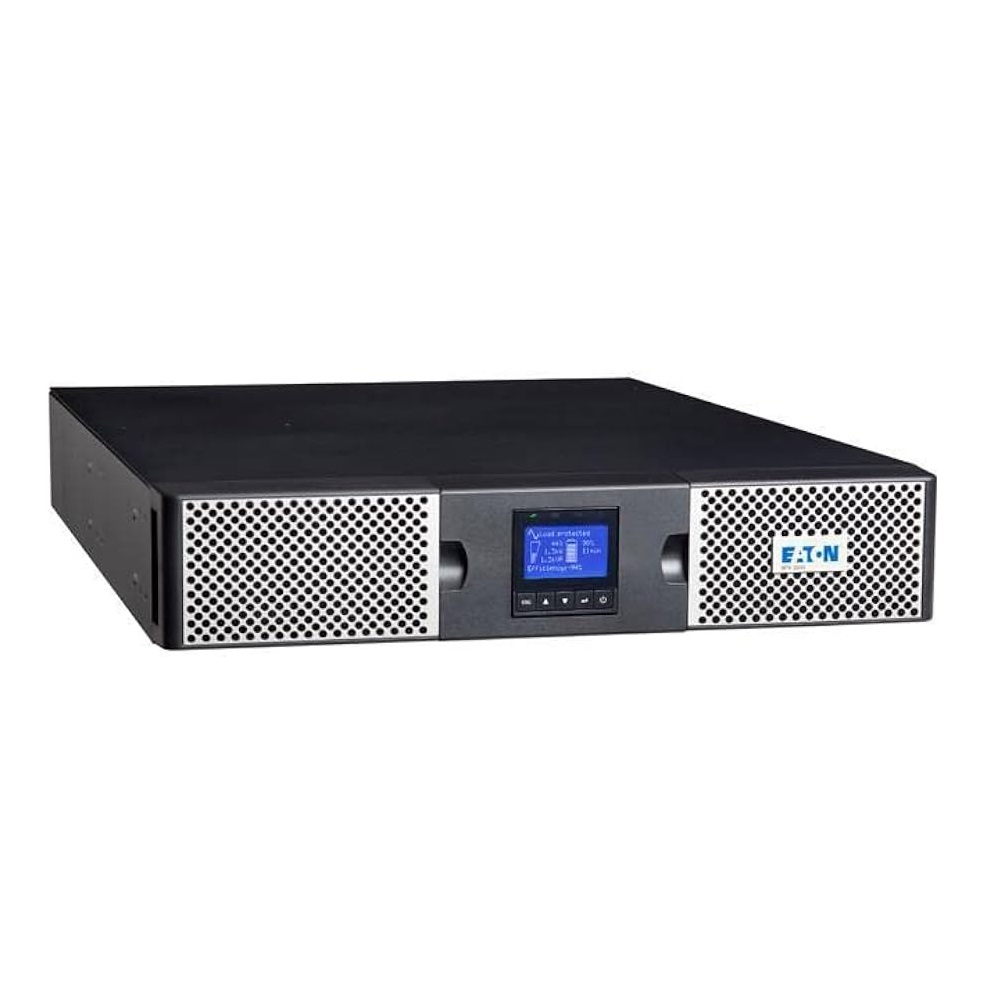

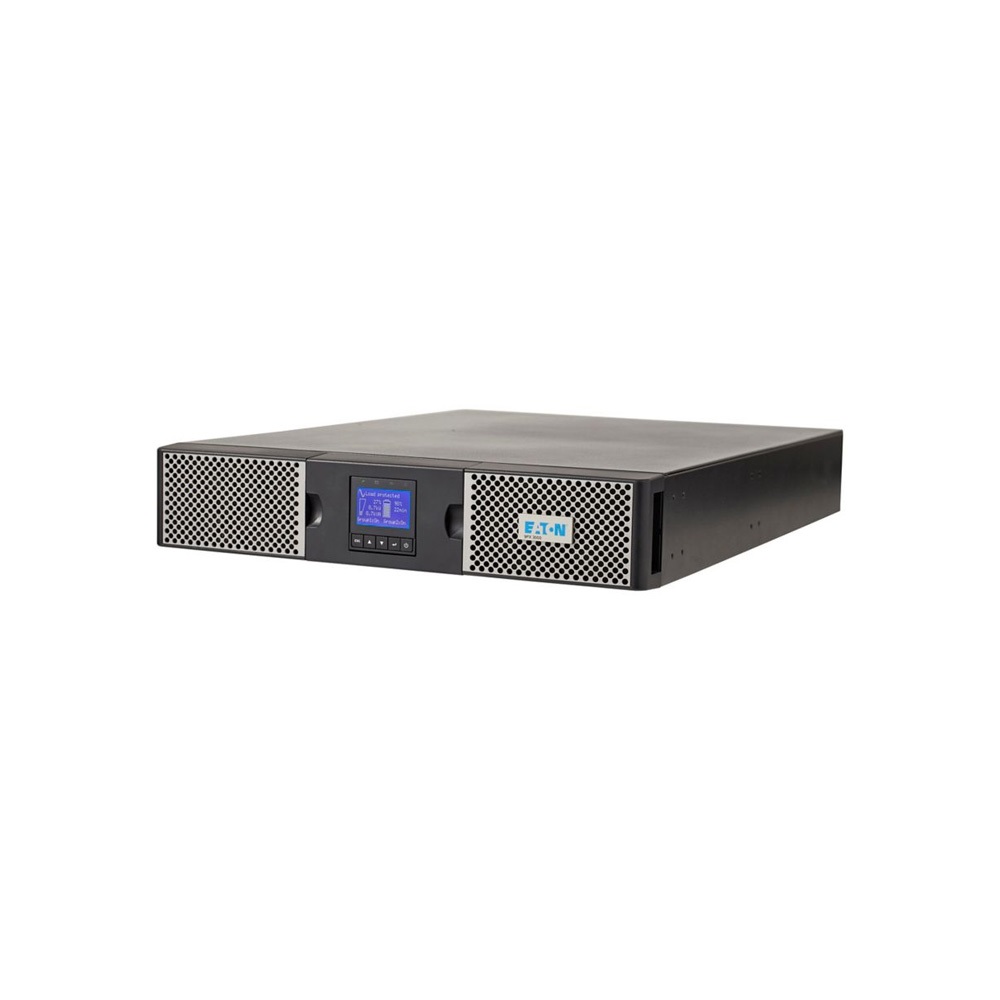

Eaton 9PX UPS

CATALOG NUMBER

9PX3000RT

UPC

743172081285

PRODUCT LENGTH/DEPTH

23.8 in

PRODUCT HEIGHT

3.4 in

PRODUCT WIDTH

17.3 in

PRODUCT WEIGHT

63.1 lb

COMPLIANCES

IEC 62040-2 Cat C1
CISPR22 Class B
FCC part 15 Class B
VCCI Class B
CE Marked

CERTIFICATIONS

cULus Listed
NOM
ENERGY STAR certified

BATTERY

RUNTIME GRAPH

BATTERY MANAGEMENT

ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement)

BATTERY REPLACEMENT

Hot-swappable internal batteries and extended battery modules (EBMs)

BATTERY TYPE

Sealed, lead-acid

EXTENDED BATTERY CAPABILITY

Add up to 4 extended battery modules (EBM). Part number 9PXEBM72RT

ELECTRICAL OUTPUT

RECEPTACLE

(6) 5-20R, (1) L5-30R

TOPOLOGY

Online/Double-conversion

WATTAGE

2700 W

VA RATING

3000 VA

OUTPUT WAVEFORM

True sine wave

VOLTAGE

120V

OUTPUT POWER FACTOR

0.9

OUTPUT NOMINAL VOLTAGE

120V default (100/110/120/125V)

OUTPUT VOLTAGE RANGE

±1% steady-state

OUTPUT FREQUENCY

50/60 Hz

ELECTRICAL INPUT

INPUT CONNECTION

L5-30P

INPUT CORD LENGTH

8 ft

INPUT NOMINAL VOLTAGE

120V default (100/110/120/125V)

INPUT FREQUENCY RANGE

60 Hz: 50–70 Hz, 50 Hz: 40–60 Hz

INPUT POWER FACTOR

>0.99 typical

CZ4 01/24

UPS TRIPP-LITE SMART ON-LINE 3000VA - 2700W - 120V TIPO TORRE – 2U RACK

BATTERY

ELECTRICAL OUTPUT

ELECTRICAL INPUT
